The URL input type enables field workers to enter a website address as part of a task.

​
What is the URL Input?

URL captures a web address with URL format validation, ensuring the entered value is a well-formed link (e.g., starts with http:// or https://). Use Cases:
  • Reference link: Store a link to a product page, ticket, or related external system
  • Document link: Capture a URL pointing to an uploaded file or shared document
  • Tracking URL: Record a third-party tracking or shipment URL for the task

​
URL Properties

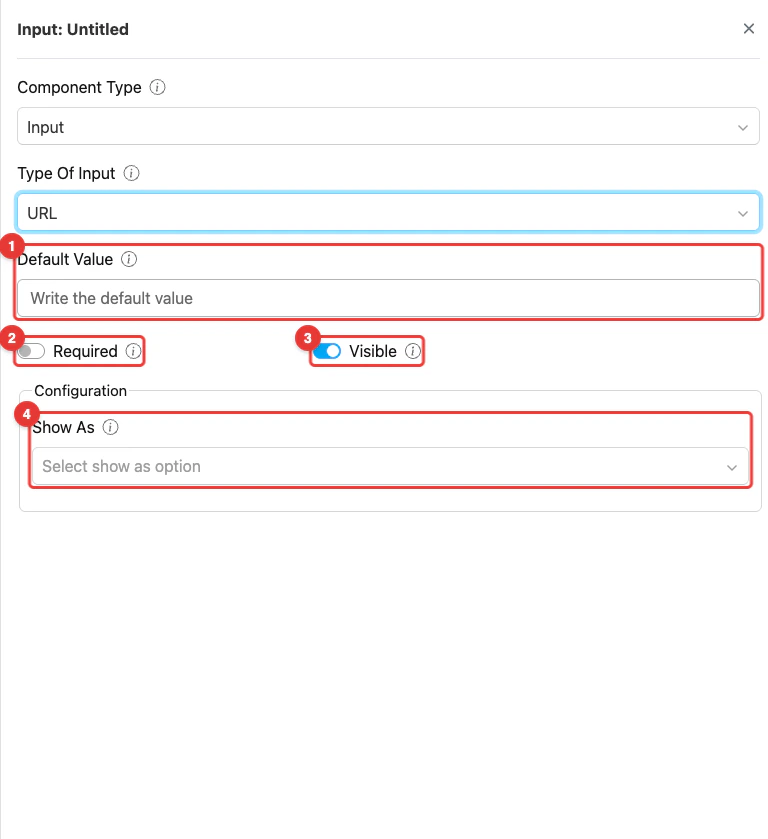

Component URL input settings

  1. Default Value: This setting allows you to set a pre-filled URL for this component. If a value is specified, any task created with this flow will use it as the initial value.
  2. Toggle Required: This option makes the URL input mandatory. If not filled, users cannot proceed to other activities.
  3. Toggle Visible: This setting affects the visibility of the component during task creation on the web and mobile, as well as task viewing on the mobile app. If the component is not visible, it will not be shown in the UI. However, both visible and hidden component data will be exported, regardless of their visibility status.
  4. Show As: This configuration, controls how the input value is displayed within the task. The value of this component will appear on the task table in the Task menu as the Title, Content, or Label, depending on the option selected.

​
How to Configure URL

​
Step 1: Add the Component

In the Flow Builder, click Add Component on the target page. Set Component Type to Input and Type Of Input to URL.

​
Step 2: Set Basic Properties

Enter the component Title (e.g., “Product Link”). Toggle Required and Visible as needed. Optionally enter a Default Value as a valid URL (e.g., https://example.com).

​
Step 3: Configure Show As (optional)

In the Configuration section, set Show As to Title, Content, or Label to control how the URL value appears on the task list in the Task menu.

​
How URL Works in Tasks


URL input on mobile preview

When a field worker opens a task on the mobile app:
  1. The URL field shows a text input with URL keyboard hints
  2. The entered value is validated against the URL format — invalid entries cannot be submitted
  3. The field may already be populated:
    • From task creation: If the task was created with a URL value, it is pre-filled
    • From Default Value: The flow-level default appears if no value was provided at creation
  4. The worker can edit the URL before completing the page
