The Subpage component is a container component that allows you to create repeatable data entry forms within a task. It enables structured collection of repeating information by grouping related fields that can be duplicated multiple times.

​
What is Subpage?

Subpage acts as a form array where users can add multiple entries of the same structure. Each entry contains multiple sub-components (input fields, selects, photos, etc.) that you configure in the Flow Builder. Use Cases:
  • Multi-recipient deliveries: Capture name, phone, signature for each recipient
  • Item inspection: Record condition, photos, notes for each item
  • Proof of delivery: Collect signature + photo + feedback from multiple parties
  • Service checkpoints: Document multiple inspection points with photos and readings

​
Allowed Sub-Components

Subpage can contain only these seven component types:
  1. View - Display-only fields (labels, instructions, calculated values)
  2. Input - All input types (String, Numeric, Date, Datetime, Time, Address, Geolocation, PhoneNumber, URL, Currency)
  3. Select - Dropdown, checkbox, or button selection (single or multi-select)
  4. Photo - Image capture with watermark and gallery options
  5. Signature - Digital signature capture
  6. List - Repeatable item list (text / checkbox / quantity types)
  7. Bill - Line-item billing with master items (name + unit price) and master costs (surcharge / discount)
Nested subpages are not allowed. You cannot add a Subpage component inside another Subpage.

​
How to Configure Subpage

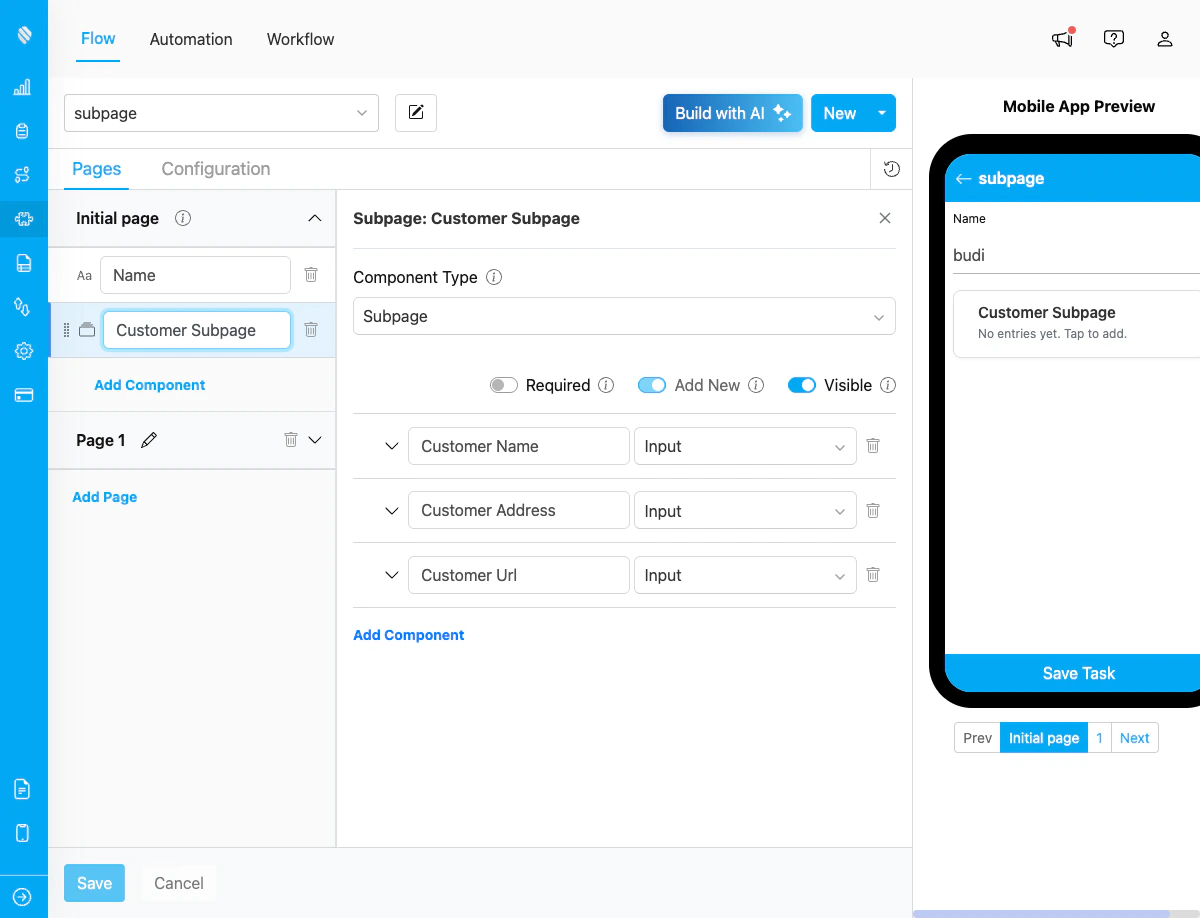

Subpage Configuration

Subpage component configuration in Flow Builder showing Customer Subpage with three sub-components

​
Step 1: Add Subpage Component

In the Flow Builder, drag the Subpage component from the component list to your page.

​
Step 2: Configure Subpage Properties

Configure the basic properties of the Subpage:
  1. Title: Name of the subpage (e.g., “Delivery Recipients”)
  2. Required: Toggle whether at least one entry must be added
  3. Visible: Toggle visibility on the mobile app

​
Step 3: Add Sub-Components

Click “Add Component” inside the Subpage to add fields. Each sub-component has:
  1. Title: Field label displayed to users
  2. Component Type: Choose from view, input, select, photo, signature, list, or bill
  3. Type (for specific components): Additional type selection (e.g., String, Numeric for Input)
  4. Required: Whether the field must be filled
  5. Visible: Whether the field is displayed
  6. Default Value: Pre-filled value (optional)

​
Step 4: Configure Component-Specific Settings

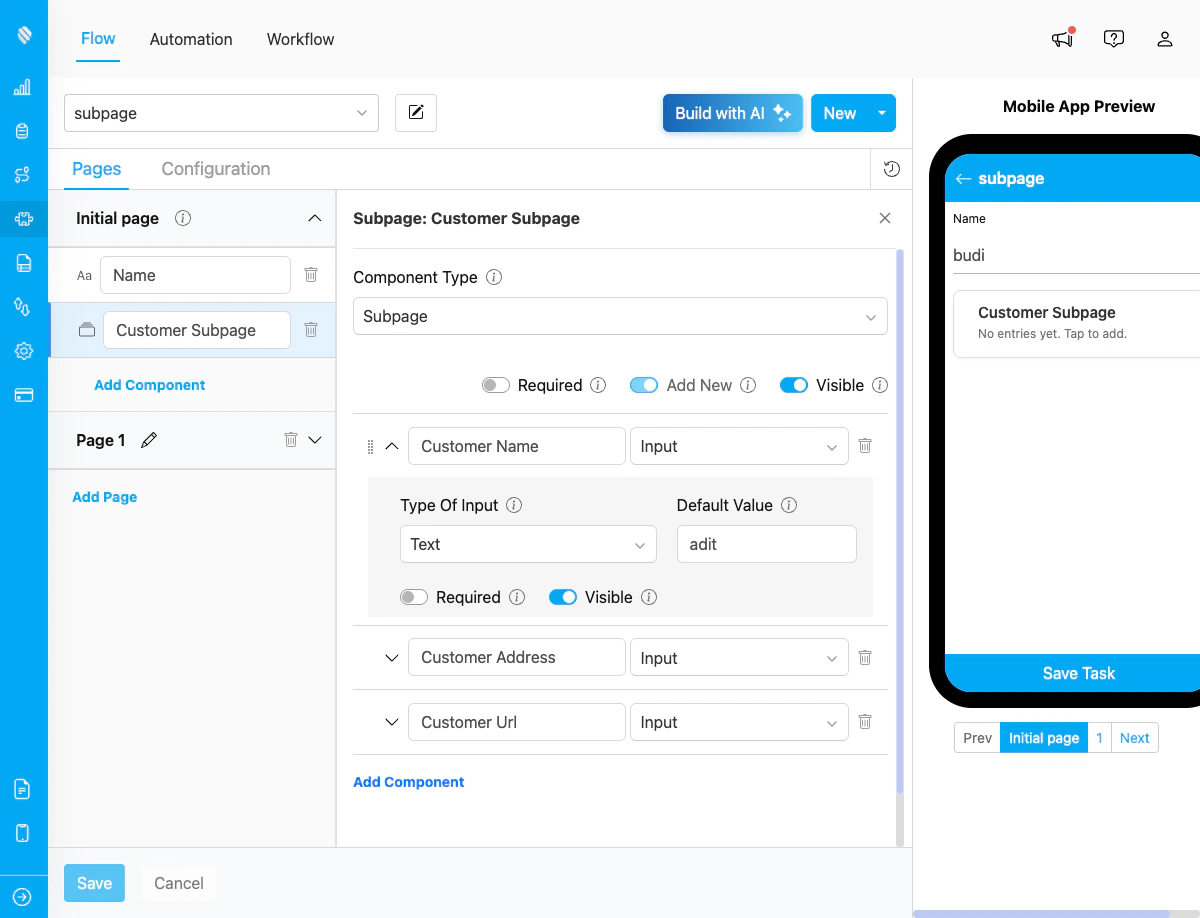

Subpage Expanded Configuration

Expanded view of a sub-component showing detailed configuration options including Type, Default Value, Required, and Visible settings

For Input Components:
  • String: Set default text value
  • Numeric: Add min/max values and units (e.g., KG, M3)
  • Date: Set default date value
  • Datetime: Set default datetime value
  • Time: Set default time value
  • Address: Multi-line text area with default value
  • Geolocation: Enable map picker for coordinates, geolock with radius settings
  • PhoneNumber: Set default phone number value
  • URL: Set default URL value with validation
  • Currency: Set default currency value with formatting
For Select Components:
  • Options: List of selectable options
  • Min/Max: Selection constraints for multi-select
  • Type: Dropdown, Checkbox, or Button display
For Photo Components:
  • Min/Max: Number of required/allowed photos (0-10+)
  • Watermark: Enable watermark on photos
  • Select Gallery: Allow selection from device gallery
For Signature Components:
  • Required: Whether signature must be captured
For Bill Components:
  • Master Items: Configure item names and unit prices that users can select at task time
  • Master Costs: Configure surcharges and discounts (name, type, amount)
  • Required: Whether at least one item must be selected before the entry can be saved

​
Step 5: Reorder Sub-Components

Drag the grip handle on the left of each sub-component to reorder fields within the Subpage.

​
Validation Rules

​
Component Level

  • Title: Required for each sub-component
  • ID: Auto-generated from title, must be unique
  • Required Field: Must be marked as required or optional

​
Subpage Level

  • Unique IDs: Sub-component IDs must be unique within the subpage
  • Reserved Keys: Cannot use reserved field names (name, flow, hubId, startTime)
  • Max ID Length: Generated IDs are limited to 47 characters

​
Restrictions

  • No nested subpages: Cannot add Subpage inside Subpage
  • Component types: Only 7 allowed types (view, input, select, photo, signature, list, bill)
  • No advanced components: Cannot add subflow, timer, capture, voice, or barcode
  • Bill limitation: Bill inside Subpage does not support “Use Data Source” (external data source). Master items and costs must be configured directly in the Flow Builder.

​
How Subpage Works in Tasks

When field workers use the mobile app or web interface to create/complete tasks:
  1. List View: Shows all entries with completion status (e.g., “3/5 fields completed”)
  2. Add Entry: Tap ”+ Add” button to create new entry
  3. Edit Entry: Tap on an entry to open the form
  4. Complete Fields: Fill in all required fields per entry
  5. Delete Entry: Remove entries that are no longer needed
Each entry in a Subpage is independent. Users can add as many entries as needed during task execution.
